~Universal Lab Camera~

An imaging system with interchangeable lensboard, front and back focus, and an optical target holder with lateral positioning. For imaging anything onto anything, ~90% 3D printed.

Universal Lab Camera
Mostly 3D printed.

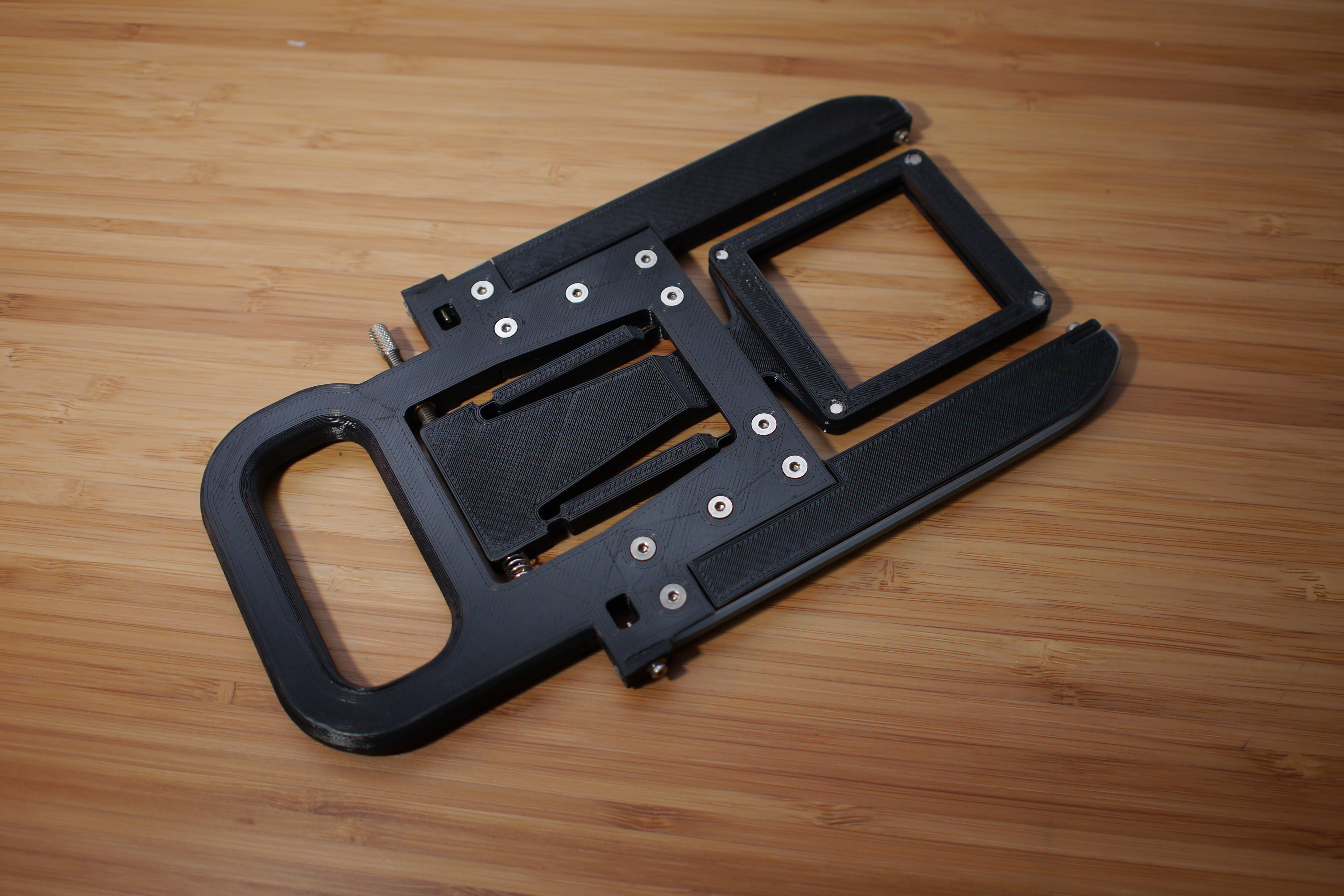

Target Carrier
Target carrier. Flexural mechanism for vertical adjustment. 50mm target retained by magnetic cover frame.

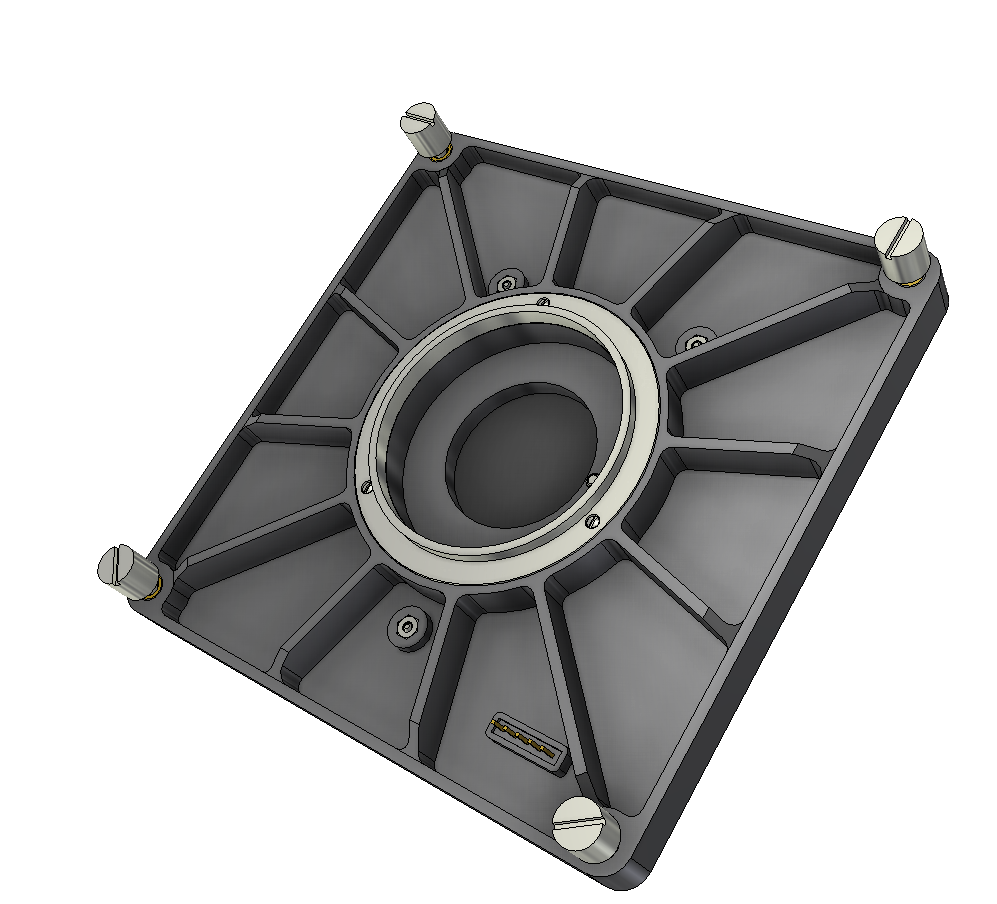

lens board
Large Format style lensboard.

It's the part on the left that's fogged out (focus is on Ezri).
